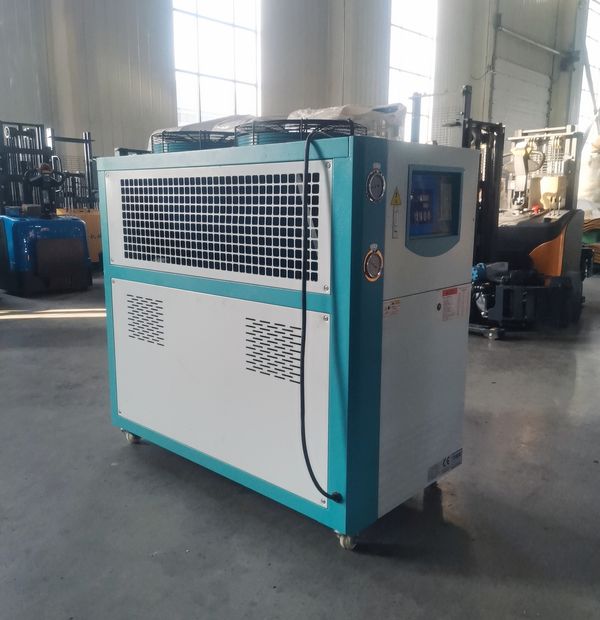

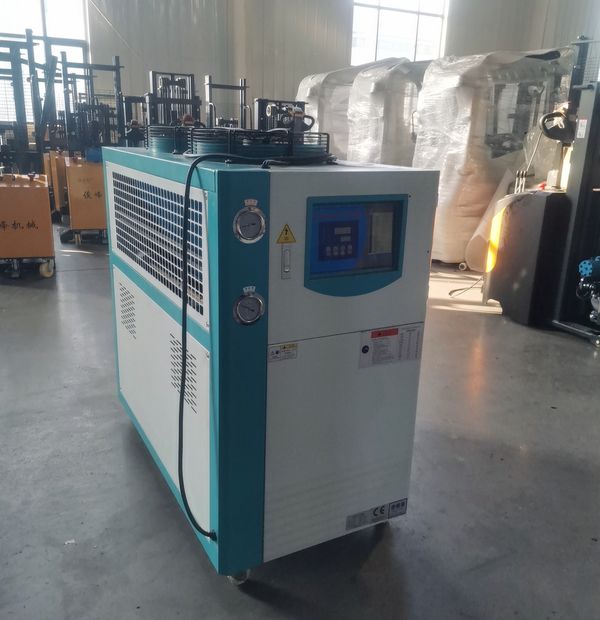

2HP air-cooled chiller technical parameters and configuration

1.Power supply: 380v/50hz

2. Refrigeration capacity: 4541 Kca1/h, 5.28kw

3. Refrigerant: R22

Control method: capillary

Configuration/Origin of Origin: Imported high-quality refrigerant

4. Compressor: scroll type

Power (HP): 2

Configuration/Origin: Gree

5. Condenser: air-cooled fin type high-efficiency heat exchanger

Air volume: 2350(m3/h)

Motor power (kw): 0.15

Heat dissipation ambient temperature ≤45℃

6. Evaporator: coil water tank type

Chilled water volume (L/min): 50

Water tank container (L): 30

Take-over diameter (DN): 20

Configuration/origin: Coil water tank type

7. Stainless steel water pump

Power (HP): 0.37

Lift (m): 22

Configuration/origin: Aoyuan water pump

8. Safety protection: compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, automatic prompt system for insufficient hot water dissipation.

Configuration/Origin

Layout: Bump

Contactor: French Schneider

Main switch: Chint

9.Description of the whole machine

Weight: 102(kg)

Overall dimensions L*W*H (excluding the length of the rear tube of the fuselage) (mm): 800*550*850

Surface treatment: main board: 2mm, sealing board: 1.5mm

Fan: 1 350MM fan-Mar
